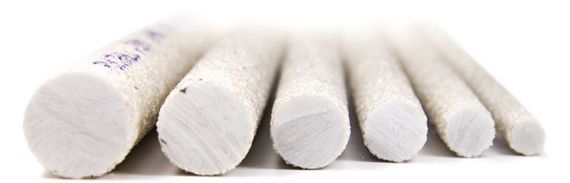

H-BAU FIBERNOX® V-ROD is a concrete reinforcement system available in a range of  bar diameters. It is made of environmentally sustainable fibre reinforced material which has high corrosion and alkali resistance, combined with high tensile strength and low weight. Available in a wide range of bent shapes and lengths, it is also non-magnetic, non conductive,  and has thermal insulating properties. H-BAU FIBERNOX® V-ROD is an effective alternative to stainless steel or galvanised reinforcing steel.

TECHNICAL DETAILS

  • Glass fibre-reinforced plastic with a resin core
  • E-Modulus > 60 GPa, guaranteed tensile strength > 1.000 MPa
  • Sand impregnated surface for a stronger bond

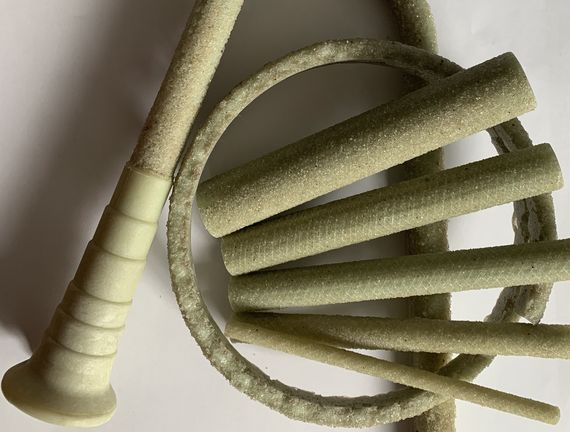

  • Straight, helical, or bent rods
  • Certified by CAN CSA S807-10 in Canada

Advantages

  • Long-term corrosion- and alkali-resistant
  • High tensile strength combined with a low weight
  • Non-conductive, non -magnetic
  • Stable, long-life material providing a very good concrete bond
  • Easily cut on site or by tunnel boring machines (TBM)

Details / Applications

Details / Applications - H-BAU FIBERNOX® V-ROD
