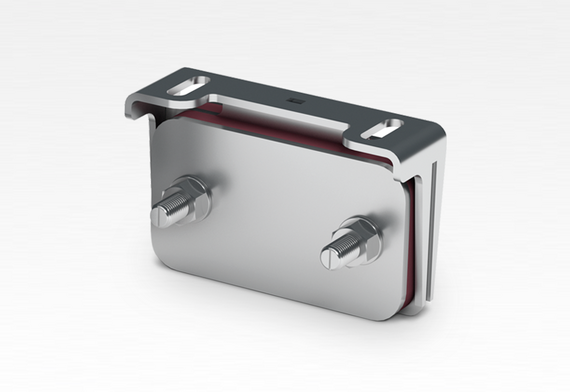

Elevator Insulation JAI is used to acoustically decouple load bearing connections from building structures. The product is designed to be of interest to acoustic engineers and clients who want to reduce structure borne noise transfer from operating machinery. The bracket used with the JAI system comprises of vibration absorbing material that is housed within a steel frame capable of transferring the applied loads back to the structure. It behaves like a mass spring system.
In elevator shafts the system is used for acoustically isolating guide rail and elevator machinery connections by significantly reducing impact sound transmission through elevator shaft walls. This reduces noise levels
experienced by occupants of rooms in the vicinity of the elevator shaft when the elevator is operating.
The system is available in two versions:
- JAI-A1 with round hole connection points
- JAI-A1J with slotted connection points to enable increased positional adjustment
Advantages
- Significant reduction of sound transmission
- Increased predictability of acoustic design
Video
Downloads

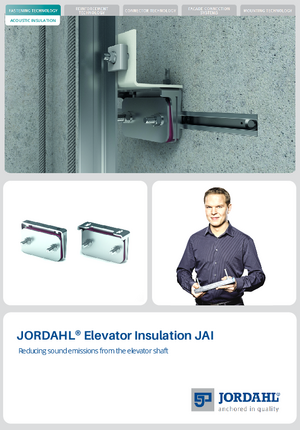

JORDAHL® ACOUSTIC ELEVATION INSULATION JAI

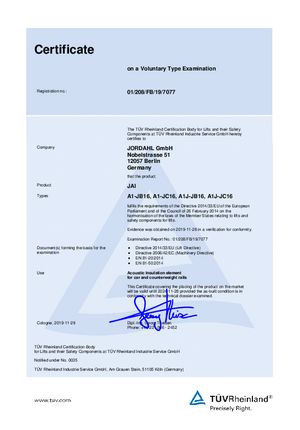

JORDAHL ACOUSTIC ELEVATOR INSULATION JAI - Declaration of Conformity

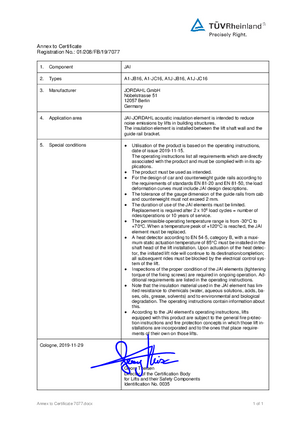

JORDAHL ACOUSTIC ELEVATOR INSULATION JAI - Declaration of Conformity - Appendix Contact us
