PFEIFER Sandwich Anchor System/ Delta Anchor System

PFEIFER Sandwich Anchor System

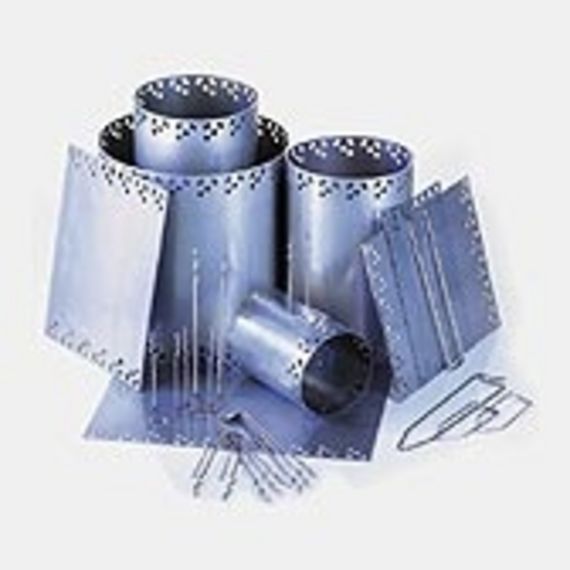

The PFEIFER Sandwich Anchor System is used to connect the internal and external concrete skins of precast sandwich panels with minimal thermal transfer across the insulated joint. The system consists of flat and cylinder anchors which are secured into the concrete using anchoring pins. The shape of the PFEIFER Cylinder Anchor enables it to be used as a bearing anchor and transfer forces in every direction safely and evenly, even when the wall elements are rotated during production and construction. The PFEIFER Delta Anchor is an alternative solution using specially shaped stainless steel rods.

Select Products on NBS Source




  • Cylinder anchor permits rotation of the sandwich panel
  • Thick insulating layers achievable
  • Reliable design resistance values
  • High-quality stainless steel
  • No drilling of insulating boards
  • Free calculation software
